Simpass ENDO balloon catheters are designed for treating all kinds of peripheral artery disease (PAD) lesions with a wide range of balloon sizes.

Simpass PTA product line has diameter options ranging from 1.5-12 mm and length options between 10-220 mm. Simpass ENDO14, ENDO18, and ENDO35 balloon catheters are compatible with 0.014", 0.018", and 0.035" guidewires, respectively.

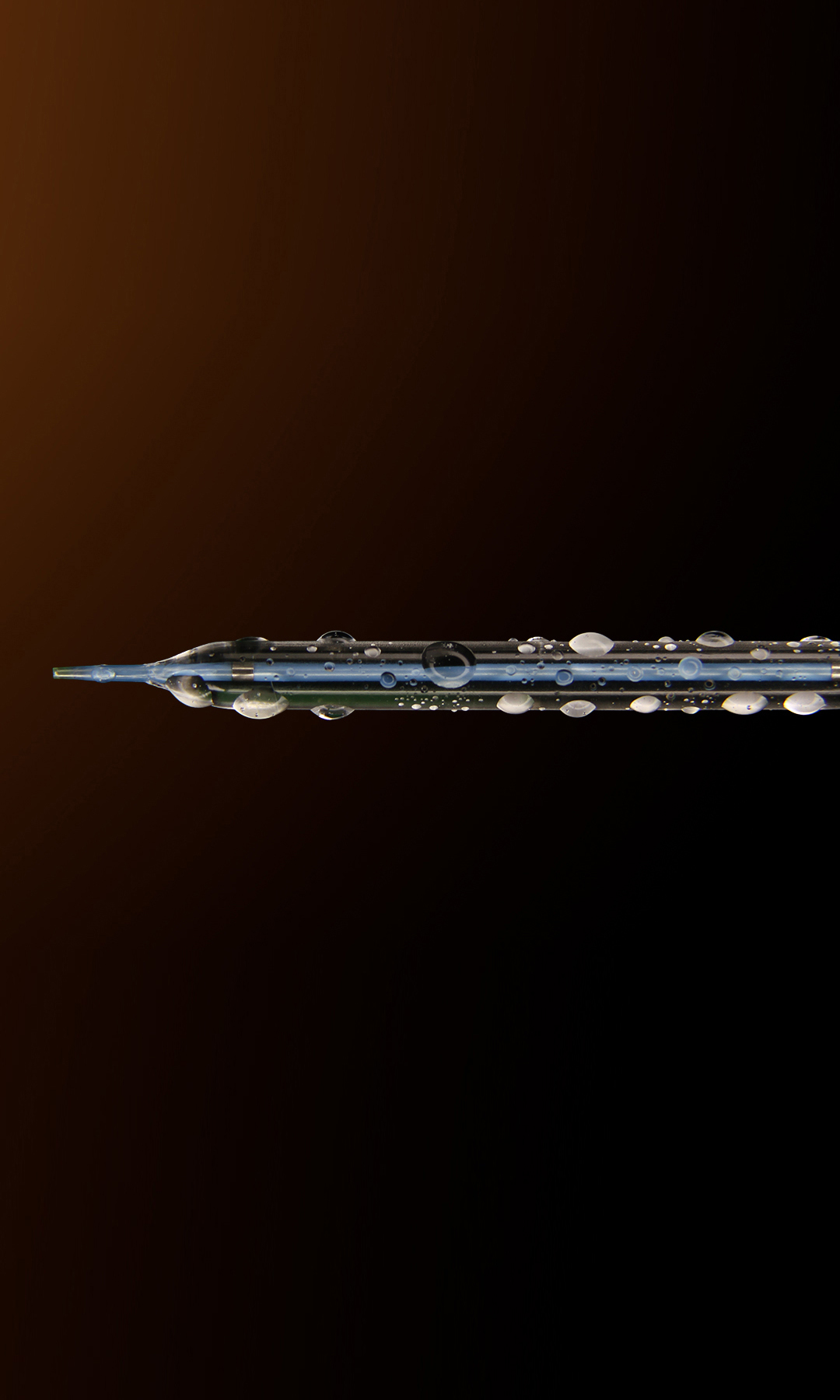

SIMPASS ENDO14

.014” RX

PTA Balloon Dilatation Catheter

Simpass ENDO14 .014" RX PTA Balloon Dilatation Catheter is designed for superior performance at below-the-knee (BTK) and below-the-ankle (BTA) procedures.



SIMPASS ENDO14

.014” RX

PTA Balloon Dilatation Catheter

Simpass ENDO14 .014" RX PTA Balloon Dilatation Catheter is designed for superior performance at below-the-knee (BTK) and below-the-ankle (BTA) procedures.





KEY FEATURES

• Improved pushability enables easy crossing at complex lesions

• Successful lesion access and crossing with low profile balloon and hydrophilic coating

• Rapid inflation & deflation time at each balloon size

• Balloon folding geometry minimizes profile and allows smooth rewrap

TECHNICAL SPECIFICATIONS

Catheter Type
Guidewire Compatibility
Usable Catheter Length (cm)
Proximal Shaft
Distal Shaft
Balloon Material
Nominal Pressure (NP)
Rated Burst Pressure (RBP)
Coating
Balloon Folds
Sheath Compatibility
Balloon Diameters (mm)
Balloon Lengths (mm)
Rapid Exchange (RX)
.014”
90 / 145
2.01F (Ø 0.67 mm) / 2.82F (Ø 0.94 mm)
2.67F (Ø 0.89 mm) / 3.42F (Ø 1.14 mm)
Nylon
8 atm
16 atm
Hydrophilic (distal tip to guidewire exit port)
3 (6 folds for 7 mm)
4 F (5F for 6-7 mm)
1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 6 / 7
15 / 20 / 30 / 40 / 60 / 80 / 100 / 120 / 150 / 220
Catheter Type : Rapid Exchange (RX)
Guidewire Compatibility : .014”
Usable Catheter Length (cm) : 90 / 145
Proximal Shaft : 2.01F (Ø 0.67 mm) / 2.82F (Ø 0.94 mm)
Distal Shaft : 2.67F (Ø 0.89 mm) / 3.42F (Ø 1.14 mm)
Balloon Material : Nylon
Nominal Pressure (NP) : 8 atm
Rated Burst Pressure (RBP) : 16 atm
Coating : Hydrophilic (distal tip to guidewire exit port)
Balloon Folds : 3 (6 folds for 7 mm)
Sheath Compatibility : 4F (5F for 6-7 mm)
Balloon Diameters (mm) : 1.5 / 2 / 2.5 / 3 / 3.5 / 4 / 4.5 / 5 / 6 / 7
Balloon Lengths (mm) : 15 / 20 / 30 / 40 / 60 / 80 / 100 / 120 / 150 / 220

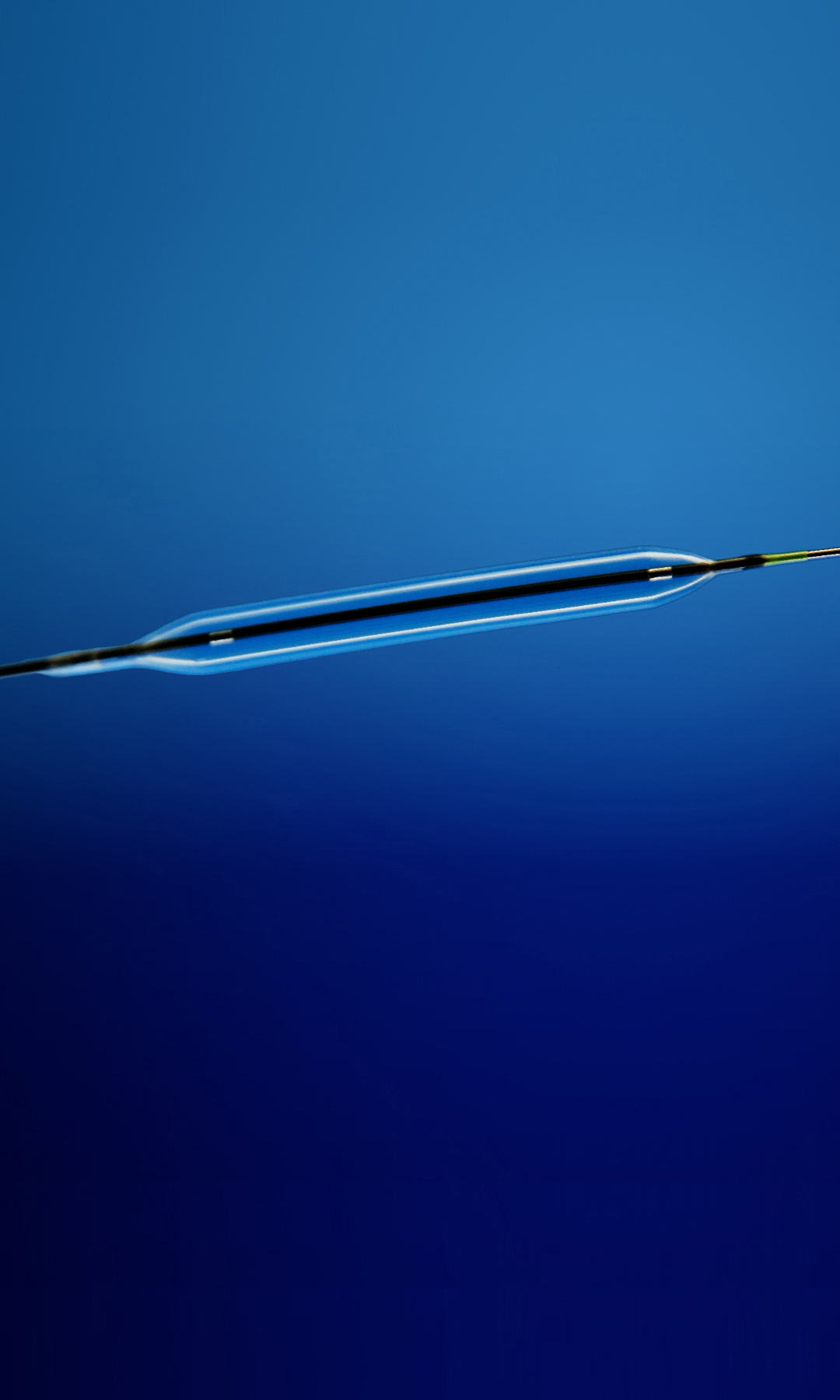

SIMPASS ENDO18

.018” OTW

PTA Balloon Dilatation Catheter

Simpass ENDO18 .018" OTW PTA Balloon Dilatation Catheter has fascinating pushability and trackability performance through its balanced coaxial shaft design. Its long balloon options allow for successful procedures at large BTK lesions.



SIMPASS ENDO18

.018” OTW

PTA Balloon Dilatation Catheter

Simpass ENDO18 .018" OTW PTA Balloon Dilatation Catheter has fascinating pushability and trackability performance through its balanced coaxial shaft design. Its long balloon options allow for successful procedures at large BTK lesions.



KEY FEATURES

• Long balloon options for dilatations at long below-the-knee (BTK) lesions

• Improved folding-rewrap technology enables multiple inflations

• Superior crossing feature with hydrophilic coating

TECHNICAL SPECIFICATIONS

Catheter Type
Guidewire Compatibility
Usable Catheter Length (cm)
Shaft
Balloon Material
Nominal Pressure (NP)
Rated Burst Pressure (RBP)
Coating
Balloon Folds
Introducer Sheath Compatibility



Balloon Diameters (mm)
Balloon Lengths (mm)
Over-the-Wire (OTW)
.018”
80 / 130 / 150
3.96F (Ø 1.32mm)
Nylon
8 atm
16 atm
Hydrophilic (distal tip to guidewire exit port)
3 (6 folds for 7-8 mm)
2-4 mm : 4 F
5-7 mm : 5 F
8 mm : 6 F
8 mm : 7 F (for 120 mm and longer)
2 / 2.5 / 3 / 3.5 / 4 / 5 / 6 / 7 / 8
10 / 20 / 25 / 30 / 40 / 60 / 80 / 100 / 120 / 150 / 220
Catheter Type : Over-the-Wire (OTW)
Guidewire Compatibility : .018”
Usable Catheter Length (cm) : 80 / 130 / 150
Shaft : 3.96F (Ø 1.32mm)
Balloon Material : Nylon
Nominal Pressure (NP) : 8 atm
Rated Burst Pressure (RBP) : 16 atm
Coating : Hydrophilic (distal tip to guidewire exit port)
Balloon Folds : 3 (6 folds for 7-8 mm)
Introducer Sheath Compatibility
: 2-4 mm : 4 F
5-7 mm : 5 F
8 mm : 6 F
8 mm : 7 F (for 120 mm and longer)
Balloon Diameters (mm) : 2 / 2.5 / 3 / 3.5 / 4 / 5 / 6 / 7 / 8
Balloon Lengths (mm) : 10 / 20 / 25 / 30 / 40 / 60 / 80 / 100 / 120 / 150 / 220

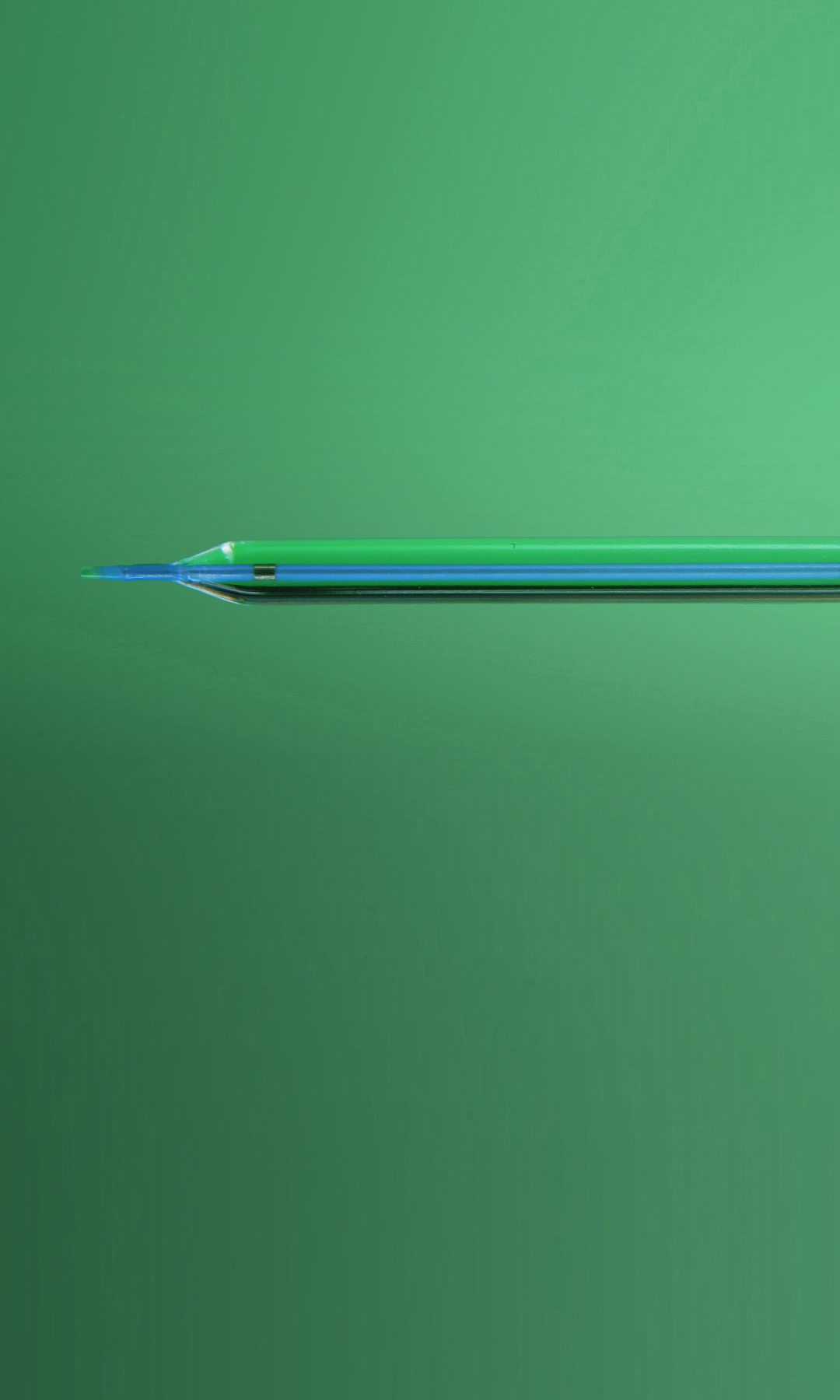

SIMPASS ENDO35

.035” OTW

PTA Balloon Dilatation Catheter

Simpass ENDO35 0.035" OTW PTA Balloon Dilatation Catheter has tailored coaxial shafts according to balloon sizes to give the best performance at each option.



SIMPASS ENDO35

.035” OTW

PTA Balloon Dilatation Catheter

Simpass ENDO35 0.035" OTW PTA Balloon Dilatation Catheter has tailored coaxial shafts according to balloon sizes to give the best performance at each option.



KEY FEATURES

• Low entry and balloon profiles enable improved crossing performance

• Balloon rewrapping allows smooth introduction and withdrawal from introducer sheath

• Large deflation lumen for rapid inflation and deflation

• Hydrophilic coated OTW shaft for better navigation through tortuous anatomy

TECHNICAL SPECIFICATIONS

Catheter Type
Guidewire Compatibility
Usable Catheter Length (cm)
Shaft
Balloon Material
Nominal Pressure (NP)
Rated Burst Pressure (RBP)
Coating
Balloon Folds
Introducer Sheath Compatibility


Balloon Diameters (mm)
Balloon Lengths (mm)
Over-the-Wire (OTW)
.035”
50 / 80 / 130
5.19 F (Ø 1.73 mm) / 5.94 F (Ø 1.98 mm)
Nylon
8 atm
14 / 16 atm
Hydrophilic (distal tip to guidewire exit port)
3 (6 folds for 7-12 mm)
3-6 mm : 5 F
7-8 mm : 6 F
9-12 mm : 7 F
3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 12
20 / 30 / 40 / 50 / 60 / 80 / 100 / 120 / 150 / 200 / 220
Catheter Type : Over-the-Wire (OTW)
Guidewire Compatibility : .035”
Usable Catheter Length (cm) : 50 / 80 / 130
Shaft : 5.19 F (Ø 1.73 mm) / 5.94 F (Ø 1.98 mm)
Balloon Material : Nylon
Nominal Pressure (NP) : 8 atm
Rated Burst Pressure (RBP) : 14 / 16 atm
Coating : Hydrophilic (distal tip to guidewire exit port)
Balloon Folds : 3 (6 folds for 7-12 mm)
Introducer Sheath Compatibility:
3-6 mm : 5 F
7-8 mm : 6 F
9-12 mm : 7 F
Balloon Diameters (mm) : 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 12
Balloon Lengths (mm) : 20 / 30 / 40 / 50 / 60 / 80 / 100 / 120 / 150 / 200 / 220
