STRUCTURAL HEART
STRUCTURAL HEART
Simeks Structural Heart portfolio consists of Simvalve FORCE and Simvalve FLEX balloon catheters. Simeks has developed the Simvalve product line for Percutaneous Transluminal Valvuloplasty (PTV), and pre-dilatation in transcatheter heart-valve replacement procedures.

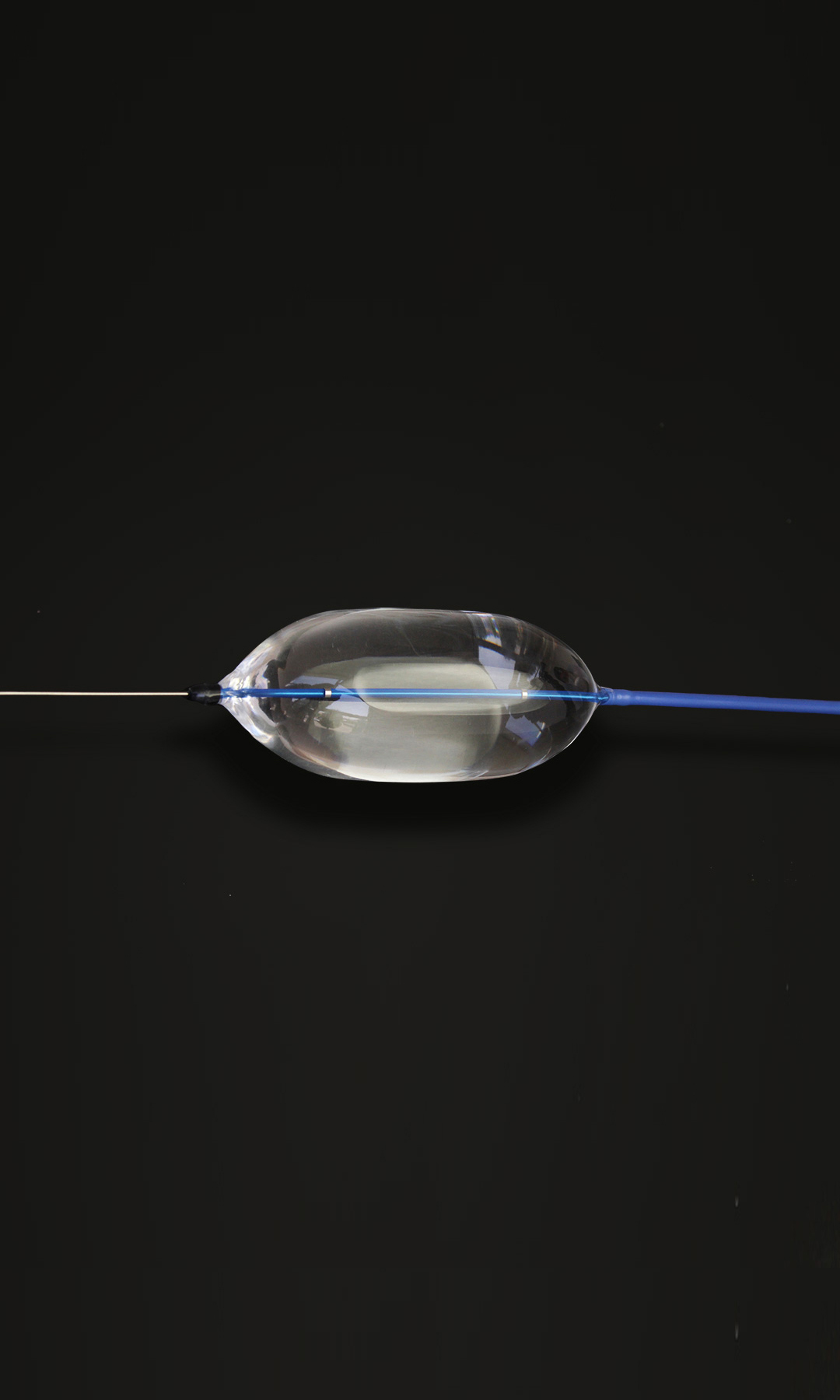

SIMVALVE FORCE
HIGH PRESSURE & RESISTANT
PTV Balloon Catheter
Simvalve FORCE PTV Balloon Catheter is the ideal PTV balloon catheter to use when you need high-pressure dilatation of the valve. The wide range of size options and its versatile design make Simvalve FORCE, the most convenient choice for structural heart procedures.
SIMVALVE FORCE
HIGH PRESSURE & RESISTANT
PTV Balloon Catheter
Simvalve FORCE PTV Balloon Catheter is the ideal PTV balloon catheter to use when you need high-pressure dilatation of the valve. The wide range of size options and its versatile design make Simvalve FORCE, the most convenient choice for structural heart procedures.
KEY FEATURES
• High pressure and resistant balloon for dilatation of stenosis in heart valves
• Advanced balloon folding enables low profile re-wrap for easier withdrawal after dilatation
• Rapid inflation and deflation times by shaft design optimization
• Engineered coaxial shaft for better trackability and pushability
• Short and soft catheter tip for safe procedures

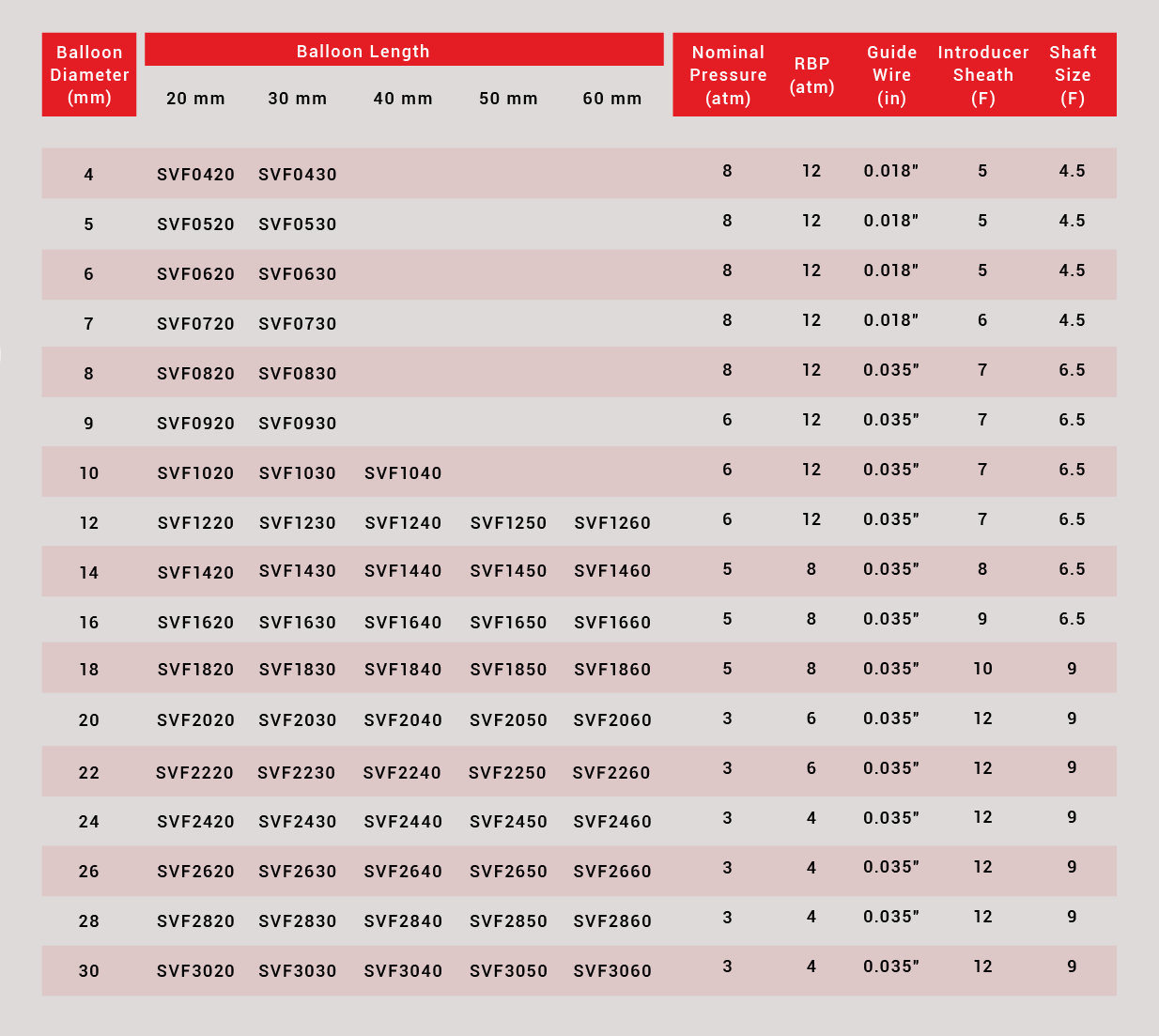

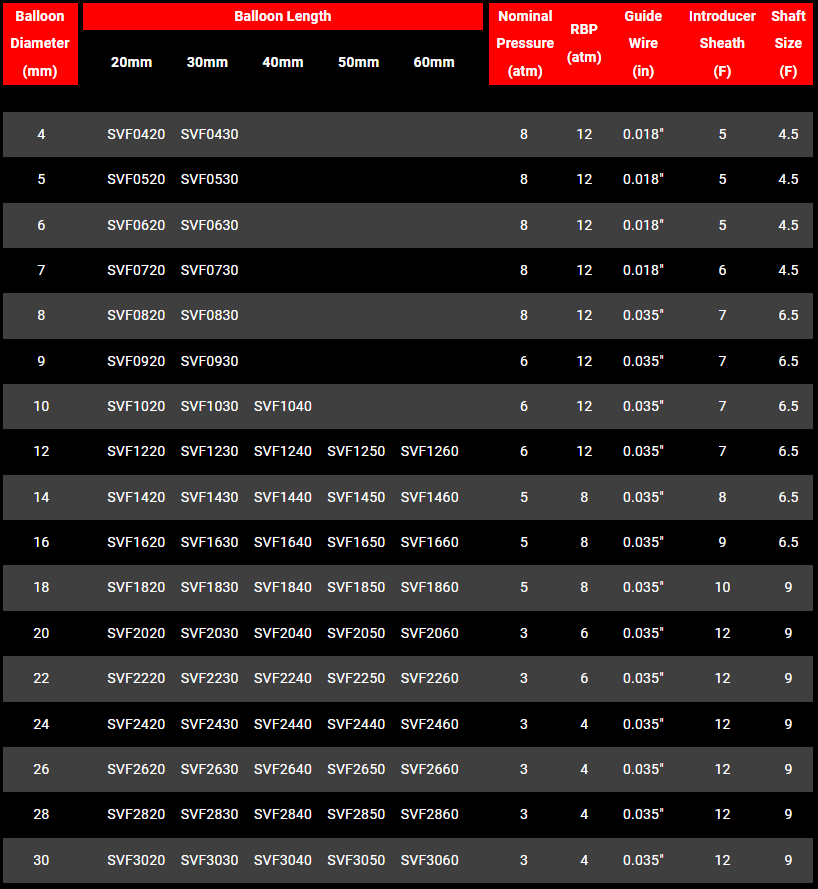

TECHNICAL SPECIFICATIONS
7-12 mm : 6 folds
14-30 mm : 8 folds
4-6 mm : 3 folds
7-12 mm : 6 folds
14-30 mm : 8 folds
| Balloon Diameter (mm) |
Balloon Length
20mm 30mm 40mm 50mm 60mm
|
Nominal Pressure (atm) |
RBP (atm) |
Guide Wire (in) |
Introducer Sheath (F) |
Shaft Size (F) |
|---|---|---|---|---|---|---|
| 4 |
SVF0420 SVF0430
|
8 | 12 | 0.018" | 5 | 4.5 |
| 5 |
SVF0520 SVF0530
|
8 | 12 | 0.018" | 5 | 4.5 |
| 6 |
SVF0620 SVF0630
|
8 | 12 | 0.018" | 5 | 4.5 |
| 7 |
SVF0720 SVF0730
|
8 | 12 | 0.018" | 6 | 4.5 |
| 8 |
SVF0820 SVF0830
|
8 | 12 | 0.035" | 7 | 6.5 |
| 9 |
SVF0920 SVF0930
|
6 | 12 | 0.035" | 7 | 6.5 |
| 10 |
SVF1020 SVF1030 SVF1040
|
6 | 12 | 0.035" | 7 | 6.5 |
| 12 |
SVF1220 SVF1230 SVF1240 SVF1250 SVF1260
|
6 | 12 | 0.035" | 7 | 6.5 |
| 14 |
SVF1420 SVF1430 SVF1440 SVF1450 SVF1460
|
5 | 8 | 0.035" | 8 | 6.5 |
| 16 |
SVF1620 SVF1630 SVF1640 SVF1650 SVF1660
|
5 | 8 | 0.035" | 9 | 6.5 |
| 18 |
SVF1820 SVF1830 SVF1840 SVF1850 SVF1860
|
5 | 8 | 0.035" | 10 | 9 |
| 20 |
SVF2020 SVF2030 SVF2040 SVF2050 SVF2060
|
3 | 6 | 0.035" | 12 | 9 |
| 22 |
SVF2220 SVF2230 SVF2240 SVF2250 SVF2260
|
3 | 6 | 0.035" | 12 | 9 |
| 24 |
SVF2420 SVF2430 SVF2440 SVF2440 SVF2460
|
3 | 4 | 0.035" | 12 | 9 |
| 26 |
SVF2620 SVF2630 SVF2640 SVF2650 SVF2660
|
3 | 4 | 0.035" | 12 | 9 |
| 28 |
SVF2820 SVF2830 SVF2840 SVF2850 SVF2860
|
3 | 4 | 0.035" | 12 | 9 |
| 30 |
SVF3020 SVF3030 SVF3040 SVF3050 SVF3060
|
3 | 4 | 0.035" | 12 | 9 |

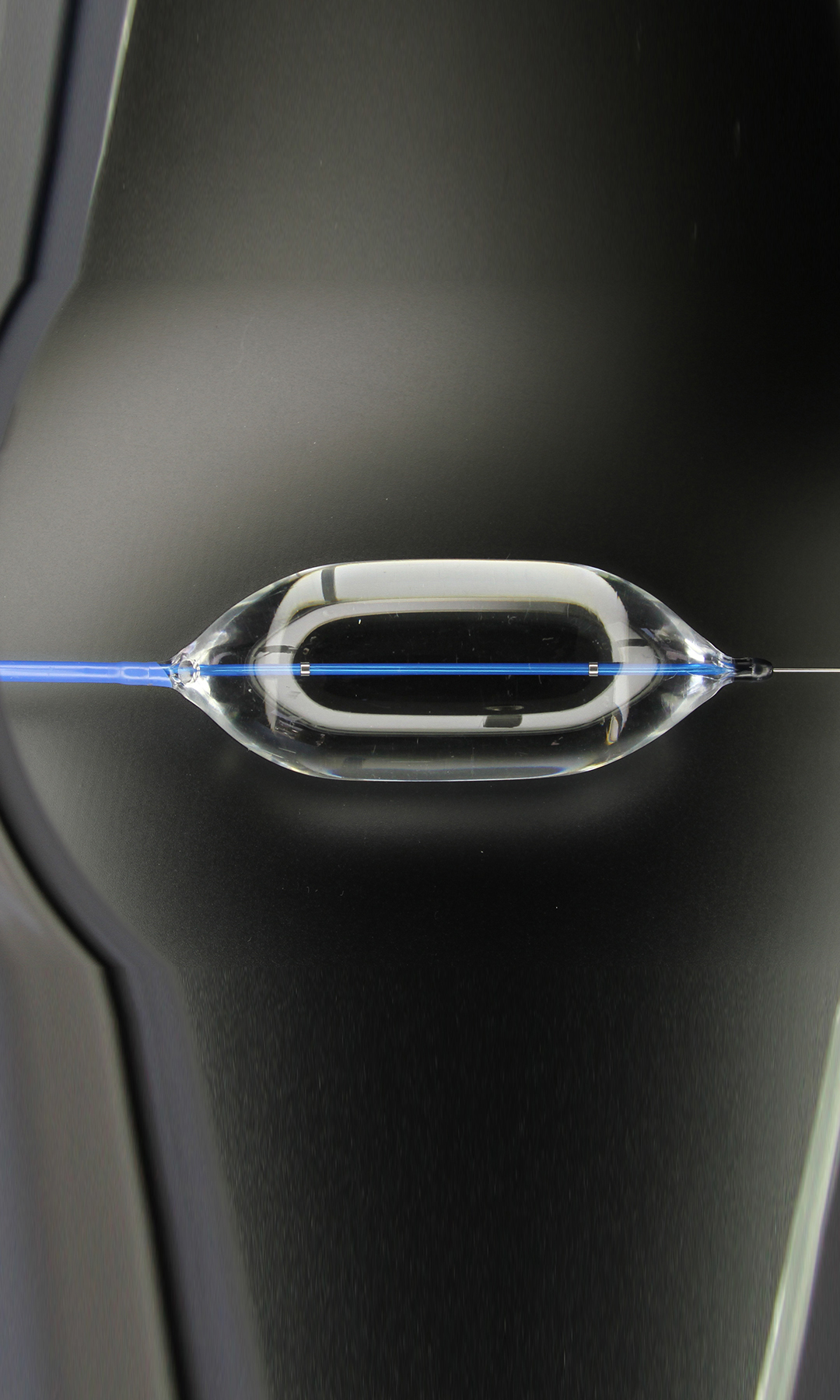

SIMVALVE FLEX
LOW PROFILE & FLEXIBLE
PTV Balloon Catheter
Simvalve FLEX PTV Balloon Catheter is designed for low profile use in structural heart procedures. This model has a low-profile balloon and shaft design which makes it possible to use the lowest introducer sheath at procedures. The coaxial shaft design provides enhanced pushability combined with a flexible distal tip for optimum steerabillity.
SIMVALVE FLEX
LOW PROFILE & FLEXIBLE
PTV Balloon Catheter
Simvalve FLEX PTV Balloon Catheter is designed for low profile use in structural heart procedures. This model has a low-profile balloon and shaft design which makes it possible to use the lowest introducer sheath at procedures. The coaxial shaft design provides enhanced pushability combined with a flexible distal tip for optimum steerabillity.
KEY FEATURES
• Fits smallest introducer system with its low profile design
• Advanced balloon folding enables low profile re-wrap for easier withdrawal after dilatation
• Rapid inflation and deflation times by shaft design optimization
• Engineered coaxial shaft for better trackability and pushability
• Short and soft catheter tip for safe procedures
• Wide size range from 4 mm to 30 mm for diameter

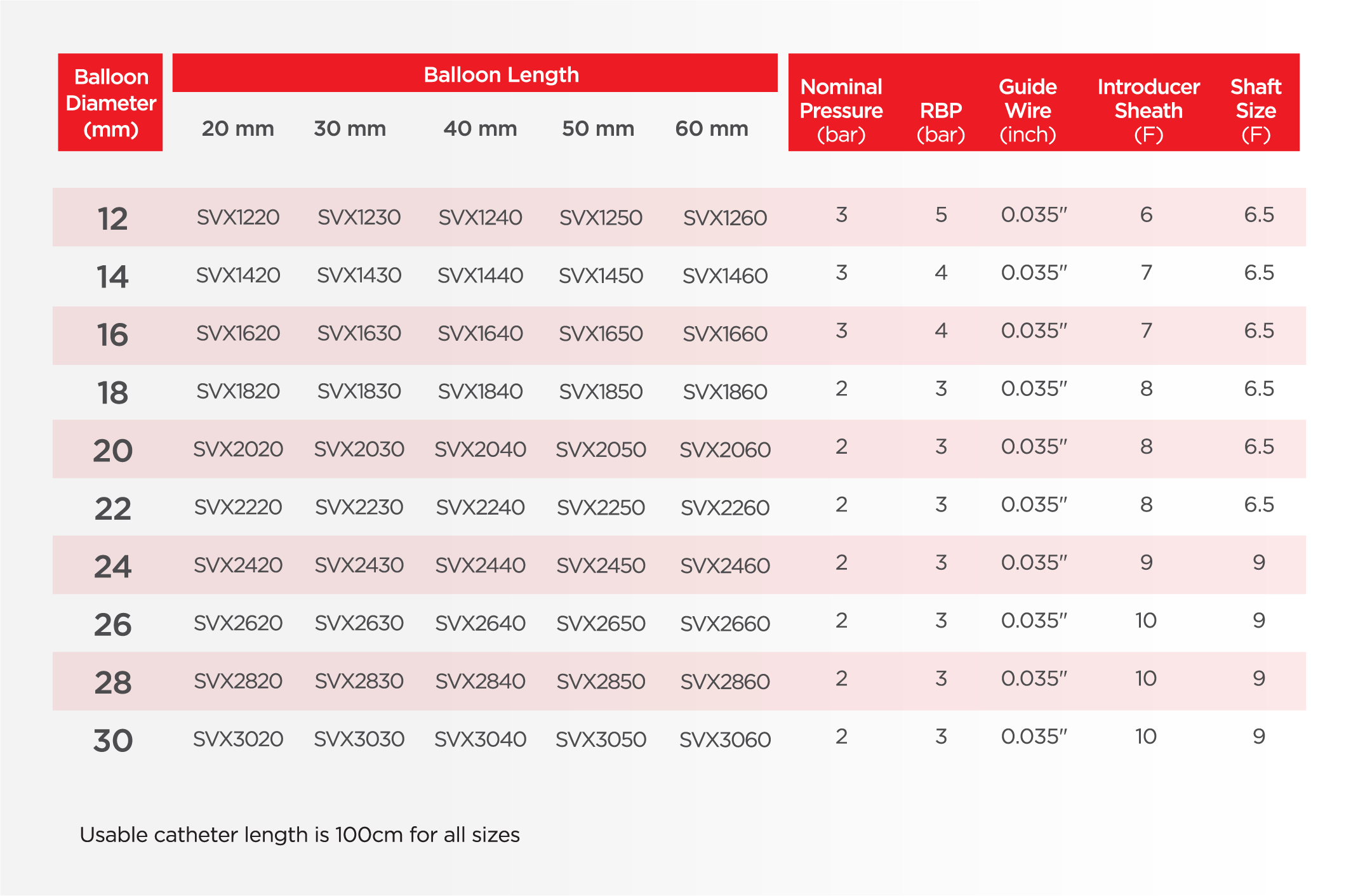

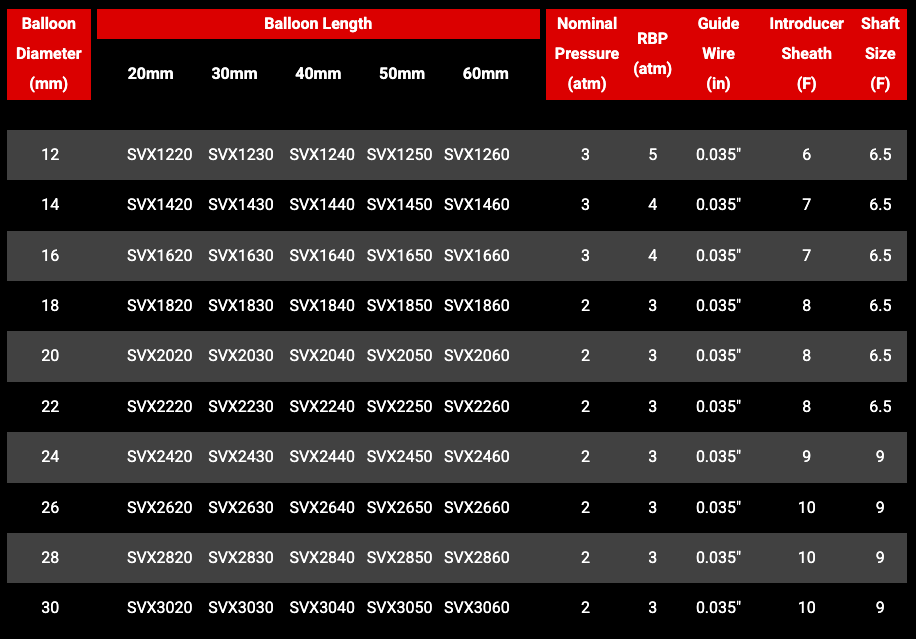

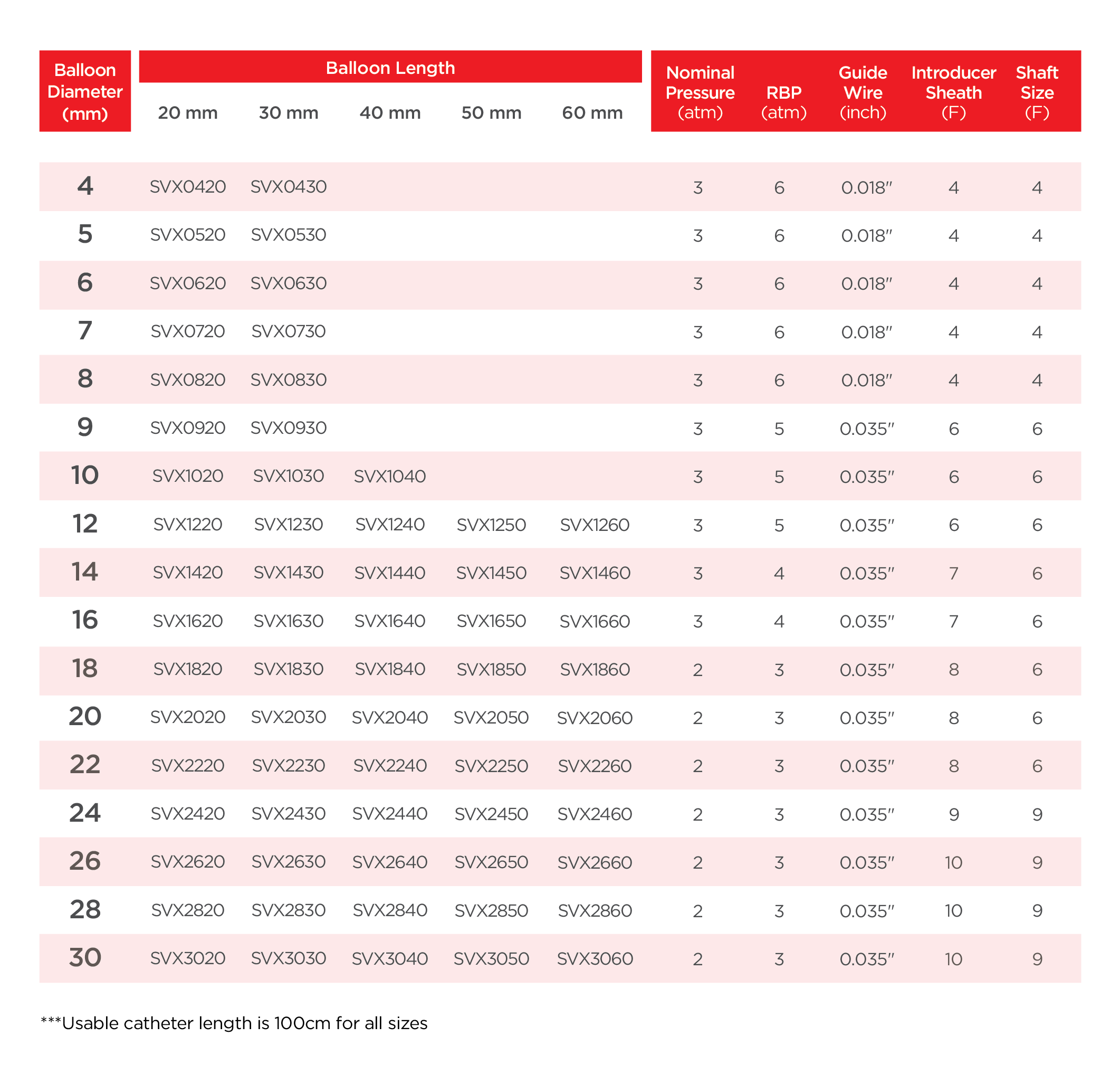

TECHNICAL SPECIFICATIONS
7-12 mm : 6 folds
14-30 mm : 8 folds
4-6 mm : 3 folds
7-12 mm : 6 folds
14-30 mm : 8 folds
| Balloon Diameter (mm) |
Balloon Length
20mm 30mm 40mm 50mm 60mm
|
Nominal Pressure (atm) |
RBP (atm) |
Guide Wire (in) |
Introducer Sheath (F) |
Shaft Size (F) |
|---|---|---|---|---|---|---|
| 12 |
SVX1220 SVX1230 SVX1240SVX1250SVX1260
|
3 | 5 | 0.035" | 6 | 6.5 |
| 14 |
SVX1420 SVX1430 SVX1440SVX1450SVX1460
|
3 | 4 | 0.035" | 7 | 6.5 |
| 16 |
SVX1620 SVX1630 SVX1640SVX1650SVX1660
|
3 | 4 | 0.035" | 7 | 6.5 |
| 18 |
SVX1820 SVX1830 SVX1840SVX1850SVX1860
|
2 | 3 | 0.035" | 8 | 6.5 |
| 20 |
SVX2020 SVX2030 SVX2040SVX2050SVX2060
|
2 | 3 | 0.035" | 8 | 6.5 |
| 22 |
SVX2220 SVX2230 SVX2240SVX2250SVX2260
|
2 | 3 | 0.035" | 8 | 6.5 |
| 24 |
SVX2420 SVX2430 SVX2440SVX2450SVX2460
|
2 | 3 | 0.035" | 9 | 9 |
| 26 |
SVX2620 SVX2630 SVX2640SVX2650SVX2660
|
2 | 3 | 0.035" | 10 | 9 |
| 28 |
SVX2820 SVX2830 SVX2840SVX2850SVX2860
|
2 | 3 | 0.035" | 10 | 9 |
| 30 |
SVX3020 SVX3030 SVX3040SVX3050SVX3060
|
2 | 3 | 0.035" | 10 | 9 |
